12V DC 25A 3-Pin SPST ON/OFF Rocker Switch
Product Code: PSZACCEPS004S
Price: $2.99
Free Standard Shipping
In stock
Ships tomorrow if ordered in the next 22 hours and 55 minutes! Please contact us for ETA
- SPST ON/OFF Switch
- IP65 Waterproof Rating
- Built-In LED Indicator
- .250" Male Contact Terminals
- Maximum of 25 Amp @ 12V DC
Details

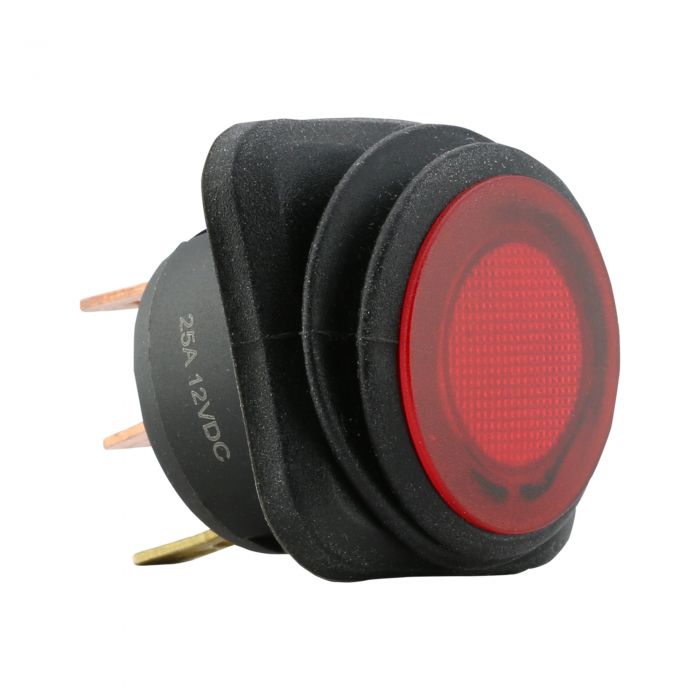

SPST Waterproof Red LED Illuminated On/Off Rocker Switch. Rated at IP65, the switch has three .250” male contact terminals, illuminates a red light when in the “on” position, can handle a maximum of 25 Amp @ 12V DC, and mounts into holes sized at 15/16” in diameter with a maximum of 1/8” in panel thickness.
What's Included?
- (1) 25A SPST Switch
Packed with features:
- SPST ON/OFF Switch
- IP65 Waterproof Rating
- Built-In LED Indicator
- .250" Male Contact Terminals
- Maximum of 25 Amp @ 12V DC
Basic
Model Name:
Does Not Apply
MPN:
EPS004S
Warranty & Certification
IP Rating:
IP65
Warranty:
1 Year
Lighting
Light Color:
Cold White
Hardware & Install
Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-25°C~+85°C
Is Waterproof?:
Yes
Package & Dimension
Length (In):
1.25
Width (In):
1.50
Height (In):
1.25
Mechanical
Terminal Material:
Copper
Number of Prongs:
3.00
Pole Type:
Single
Throw Type:
Single
Terminal Type:
.250" Quick Disconnect
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
Yes
Electrical
Max Switching DC Voltage:
12V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
25.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
