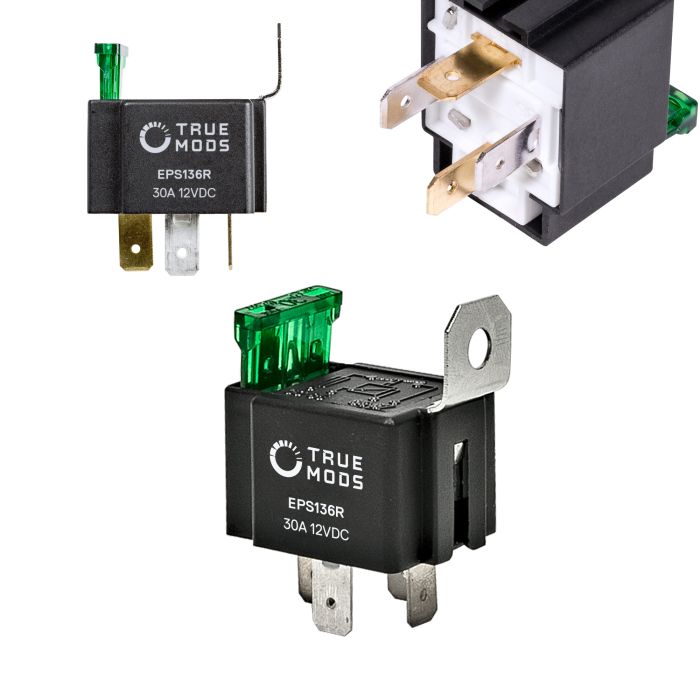

14V DC 30A SPST 4-Pin Fused Relay Replacement for EPS179R
Product Code: PSZACCEPS136R
Price: $2.00
Out of stock
Ships tomorrow if ordered in the next 20 hours and 9 minutes! Please contact us for ETA
Details
Lights not working because of a burned out relay? Replace your relay and get back on the road with this new 4-pin 30A fused relay.
What's Included?
- (1) 4-Pin 30A Fused Relay
Basic
MPN:
EPS136R
Warranty & Certification
Warranty:
1 Year
Hardware & Install
Mounting Type:
Bracket-Mount
Mounting Hardware:
Fasteners
Housing Material:
Plastic
Operating Temperature:
-40°C ~ +85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
1.00
Width (In):
1.38
Height (In):
1.75
Mechanical
Terminal Material:
Silver Plated Copper
Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Single
Release Time:
5msec max
Terminal Type:
.250" Quick Disconnect
NO/NC:
NO
Electrical
Max Switching DC Voltage:
12V DC
Max Switching Power:
360.00
Dielectric Strength:
AC 1500V 1 minute
Trigger Coil Current:
1.50
Coil Resistance:
80.00
Has Flyback Diode?:
No
Has Resistor?:
No
